Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,016HTML edition
← Chapter contentsManual collection

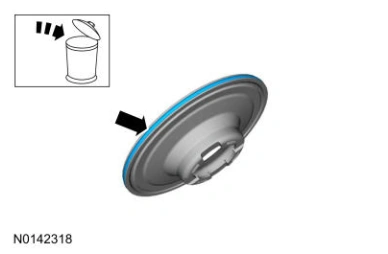

Shift Solenoids (Ss) — original illustration 1, reference 9016Original colors & callouts · Select to enlarge

104. Remove and discard the O-ring seals from the clutch apply piston.

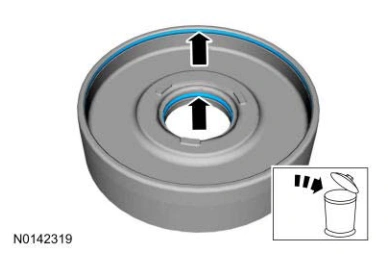

Shift Solenoids (Ss) — original illustration 2, reference 9016Original colors & callouts · Select to enlarge

105. Remove and discard the Teflon ® seals.

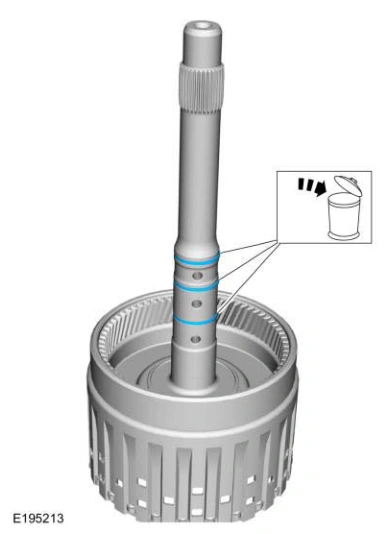

Shift Solenoids (Ss) — original illustration 3, reference 9016Original colors & callouts · Select to enlarge

106.
