tools and repeat the steps for the other 2 Teflon ® seals. Use Special Service Tool: 307-716 Installer, Teflon Seal.

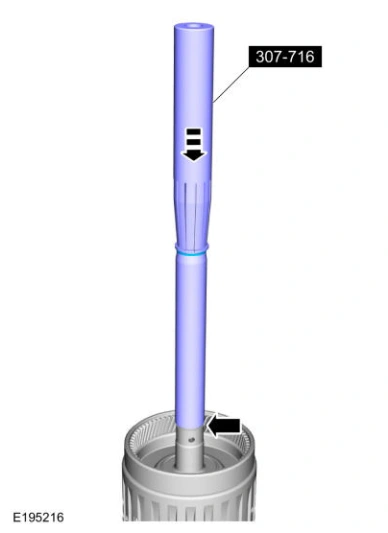

Shift Solenoids (Ss) — original illustration 1, reference 9018Original colors & callouts · Select to enlarge

109. Install the special tool to size the 3 Teflon ® seals. Use Special Service Tool: 307-716 Installer, Teflon Seal.

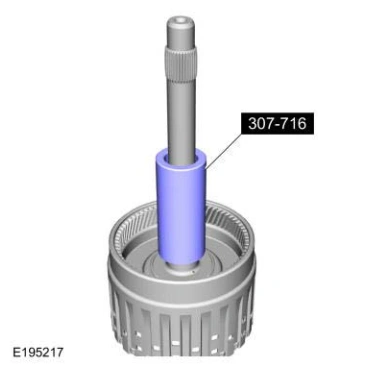

Shift Solenoids (Ss) — original illustration 2, reference 9018Original colors & callouts · Select to enlarge

110. Install a new outer O-ring seal on the overdrive clutch balance piston. Lightly coat the O-ring seal with clean transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)
