Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,020HTML edition

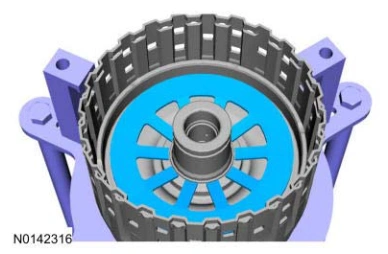

Shift Solenoids (Ss) — original illustration 1, reference 9020Original colors & callouts · Select to enlarge

NOTE: The cone shape of the balance piston must face up when installed correctly.

114. Install the overdrive clutch balance piston.

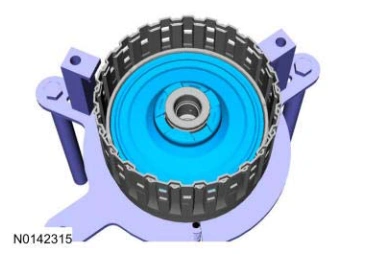

Shift Solenoids (Ss) — original illustration 2, reference 9020Original colors & callouts · Select to enlarge

115. Using the special tool and a press, install the balance piston retaining ring. Use Special Service Tool: 307-209 Compressor, Spring Washer.

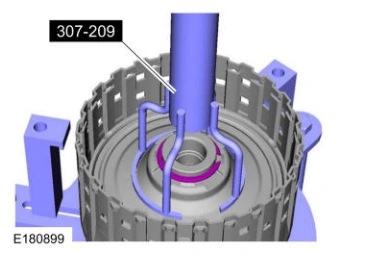

Shift Solenoids (Ss) — original illustration 3, reference 9020Original colors & callouts · Select to enlarge

NOTE: Friction and steel plate quantity will vary based on engine displacement.

116. Soak the overdrive clutch in clean transmission fluid. For friction and steel plate quantity, refer to the Clutch Plate Quantity Chart. Refer to: Specifications .
