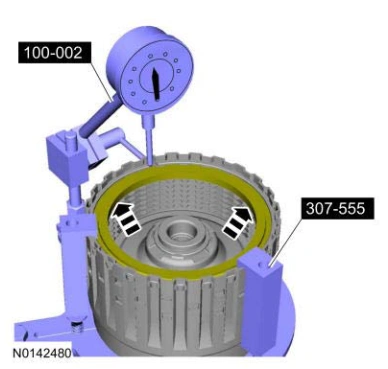

120. Rotate the overdrive clutch assembly 180 degrees from the opening of the snap ring, take a second reading and record this reading as reading B.
Description | Reading |
|---|---|
Reading A | |
Reading B | |
Average reading A and B for a total end clearance |
Step 121
0.5-0.9 mm (0.019-0.035 in)
If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is high, re-measure using a thicker select fit snap ring. If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is low, re-measure using a thinner select fit snap ring.

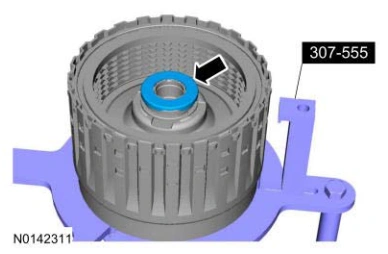

122. Install the T3 thrust bearing.
