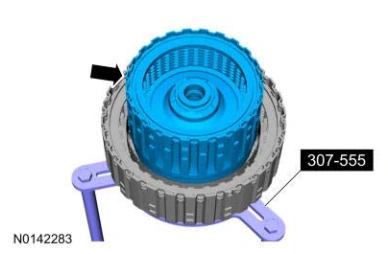

123. Position the forward clutch assembly in the special tool and install the overdrive clutch pack onto the forward clutch and planetary gear set.Use Special Service Tool: 307-555 End Play Gauge, Clutch.

Shift Solenoids (Ss) — original illustration 1, reference 9023Original colors & callouts · Select to enlarge

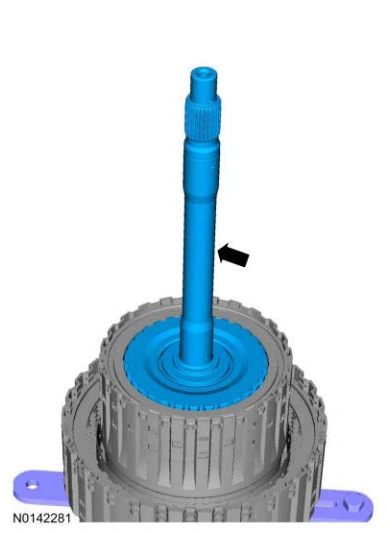

124. Install the intermediate shaft assembly.

Shift Solenoids (Ss) — original illustration 2, reference 9023Original colors & callouts · Select to enlarge

NOTE: Inspect and install new thrust bearings as required.

125. Install the T4 intermediate shaft bearing.
