gap in the same position as the original snap ring or damage to the transmission can occur.

128.

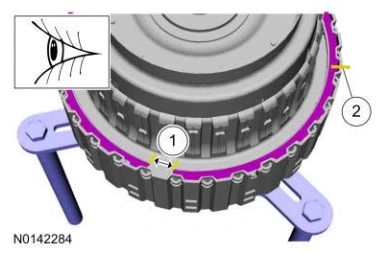

1. Install the snap ring with the snap ring gap approximately 120 ° away from the mark made on the forward clutch hub during disassembly.

2. Index mark from original snap ring gap location.

Shift Solenoids (Ss) — original illustration 1, reference 9025Original colors & callouts · Select to enlarge

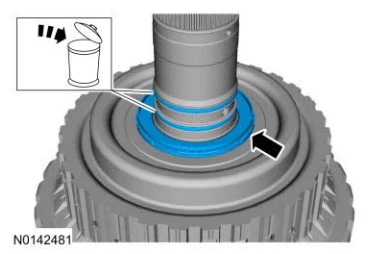

129. Remove and discard the 2 scarf cut seals and remove the roller bearing.

Shift Solenoids (Ss) — original illustration 2, reference 9025Original colors & callouts · Select to enlarge

130. Remove the T5 thrust bearing.
