Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,028HTML edition
← Chapter contentsManual collection
Shift Solenoids (Ss) — original illustration 1, reference 9028Original colors & callouts · Select to enlarge

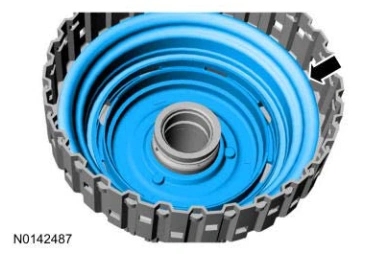

137. Remove and discard the outer O-ring seal from the balance piston.

Shift Solenoids (Ss) — original illustration 2, reference 9028Original colors & callouts · Select to enlarge

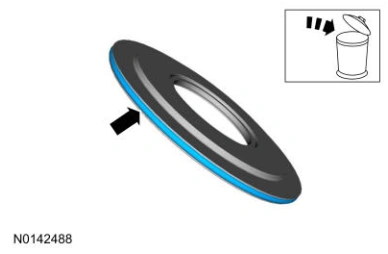

138. Remove and discard the O-ring seals from the apply piston.

Shift Solenoids (Ss) — original illustration 3, reference 9028Original colors & callouts · Select to enlarge

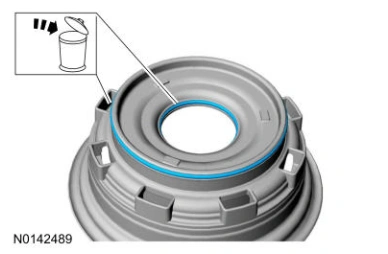

139. Inspect the components of the direct clutch for damage. If damage is indicated, install new components as necessary.

140. Install new O-ring seals on the apply piston. Lightly coat the O-ring seals with clean transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.)

Ford_Mustang_all_2015-2017.pdf · source reference 9028
