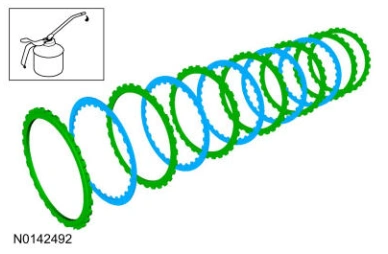

147. Install the direct clutch plates, starting with the wave spring then a steel plate and alternating between steel and friction plates, and ending with the pressure plate on the top.

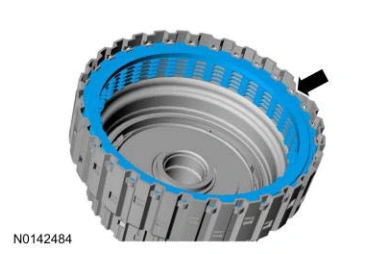

Shift Solenoids (Ss) — original illustration 2, reference 9031Original colors & callouts · Select to enlarge

148. Install the direct clutch snap ring.

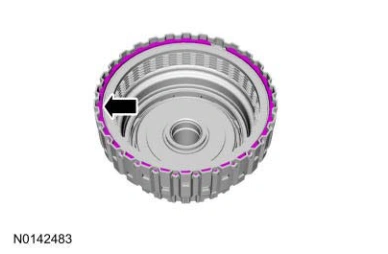

Shift Solenoids (Ss) — original illustration 3, reference 9031Original colors & callouts · Select to enlarge

NOTE: Inspect the thrust bearing for damage and install a new thrust bearing if damage is found.

149. Install the T5 thrust bearing.
