Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,034HTML edition
← Chapter contentsManual collection

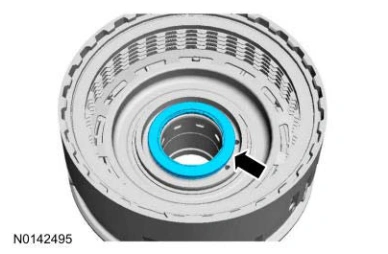

Shift Solenoids (Ss) — original illustration 1, reference 9034Original colors & callouts · Select to enlarge

156. Remove the intermediate clutch plate snap ring.

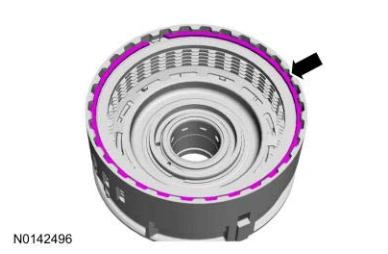

Shift Solenoids (Ss) — original illustration 2, reference 9034Original colors & callouts · Select to enlarge

157. Remove the intermediate clutch plates. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

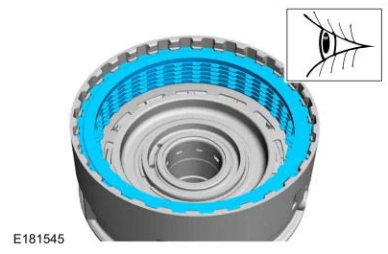

Shift Solenoids (Ss) — original illustration 3, reference 9034Original colors & callouts · Select to enlarge

158. Using the special tool, remove and discard the intermediate clutch return spring retainer. Use Special Service Tool: 307-525 Compressor, Clutch Spring.
