Description | Reading |
|---|---|
Reading A | |
Reading B | |
Average reading A and B for a total end clearance |
NOTE: If the final measurement is not within specification, install a new snap ring until the correct specification is achieved.
Step 153
0.5-1.3 mm (0.019-0.051 in)
If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is high, re-measure using a thicker select fit snap ring. If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is low, re-measure using a thinner select fit snap ring.

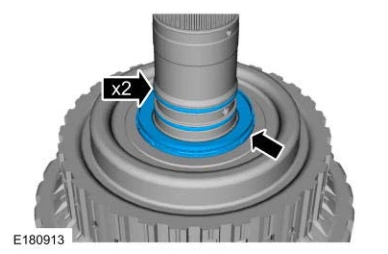

154. Install 2 new scarf cut seals and the roller bearing.
NOTE: The intermediate clutch plate quantity is model dependent on engine size. Failure to install the correct clutch plate quantity will result in transmission failure.
NOTE: The intermediate clutch piston is model dependent on engine size due to the different quantity of intermediate clutch plates. If installing a new intermediate clutch piston, check to make sure the height of the new piston is the same as the original piston. Failure to install the correct piston will result in transmission failure.
155. Remove the T6 thrust bearing.
