Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,030HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9030Original colors & callouts · Select to enlarge

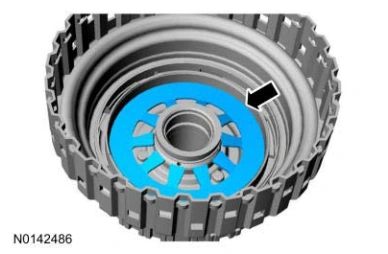

144. Install the balance piston.

Shift Solenoids (Ss) — original illustration 2, reference 9030Original colors & callouts · Select to enlarge

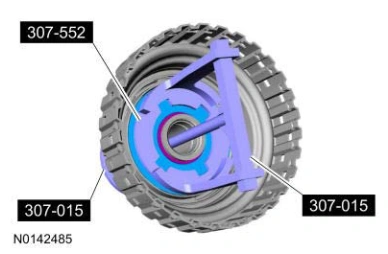

145. Install the special tools the direct clutch assembly and install a the balance piston snap ring. Use Special Service Tool: 307-015 Compressor, Clutch Spring., 307-552 Compressor, Clutch Spring.

Shift Solenoids (Ss) — original illustration 3, reference 9030Original colors & callouts · Select to enlarge

NOTE: Friction and steel plate quantity will vary based on engine displacement.

146. Soak the direct clutch in clean transmission fluid. For friction and steel plate quantity, refer to the Clutch Plate Quantity Chart. Refer to: Specifications .

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)
