Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,029HTML edition

← Chapter contents Manual collection

(MERCON ® LV) (WSS-M2C938-A)

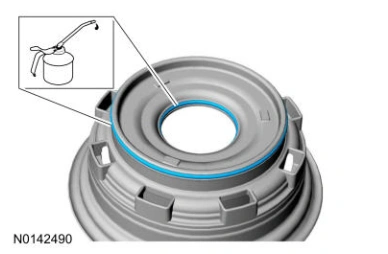

Shift Solenoids (Ss) — original illustration 1, reference 9029Original colors & callouts · Select to enlarge

141. Install a new O-ring seal on the balance piston. Lightly coat the O-ring seal with clean transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

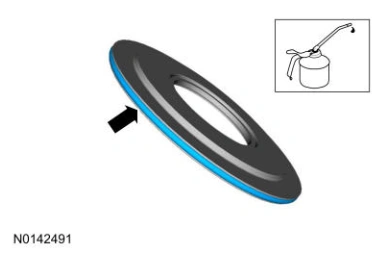

Shift Solenoids (Ss) — original illustration 2, reference 9029Original colors & callouts · Select to enlarge

142. Install the direct clutch piston.

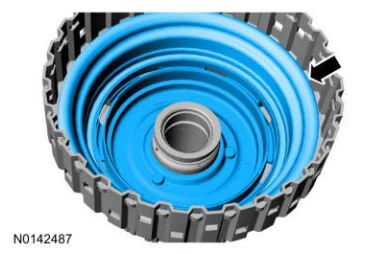

Shift Solenoids (Ss) — original illustration 3, reference 9029Original colors & callouts · Select to enlarge

143. Install the direct clutch return spring.
