Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,026HTML edition
← Chapter contentsManual collection

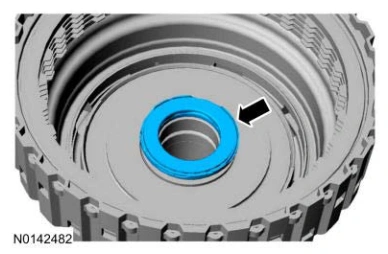

Shift Solenoids (Ss) — original illustration 1, reference 9026Original colors & callouts · Select to enlarge

131. Remove the direct clutch snap ring.

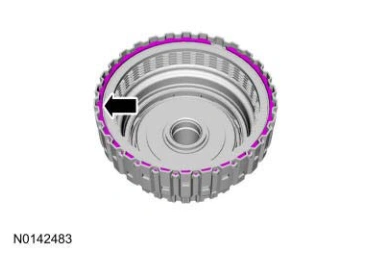

Shift Solenoids (Ss) — original illustration 2, reference 9026Original colors & callouts · Select to enlarge

132. Remove the direct clutch steel and friction plates. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

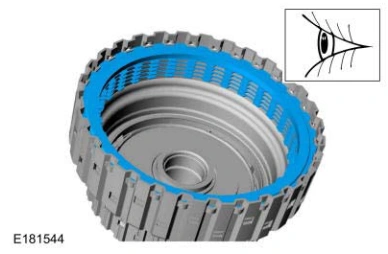

Shift Solenoids (Ss) — original illustration 3, reference 9026Original colors & callouts · Select to enlarge

133. Install the special tools and remove the direct clutch balance piston snap ring. Use Special Service Tool: 307-015 Compressor, Clutch Spring., 307-552 Compressor, Clutch Spring.
