Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,027HTML edition
← Chapter contentsManual collection

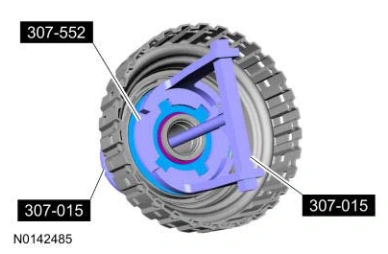

Shift Solenoids (Ss) — original illustration 1, reference 9027Original colors & callouts · Select to enlarge

134. Remove the balance piston.

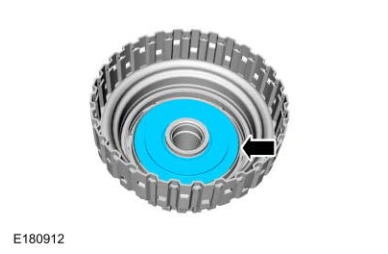

Shift Solenoids (Ss) — original illustration 2, reference 9027Original colors & callouts · Select to enlarge

135. Remove the direct clutch return spring.

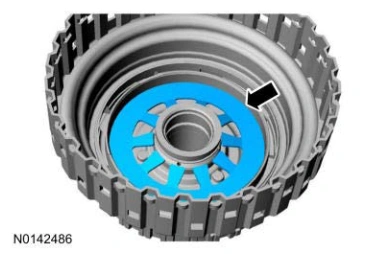

Shift Solenoids (Ss) — original illustration 3, reference 9027Original colors & callouts · Select to enlarge

136. Remove the direct clutch piston.
