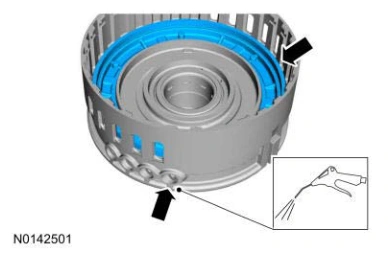

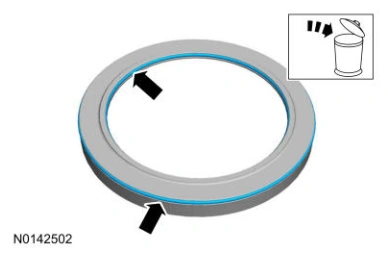

162. Remove and discard the inner and outer intermediate clutch piston O-ring seals.

Shift Solenoids (Ss) — original illustration 2, reference 9036Original colors & callouts · Select to enlarge

163. Install the inner and outer intermediate clutch piston O-ring seals.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Shift Solenoids (Ss) — original illustration 3, reference 9036Original colors & callouts · Select to enlarge

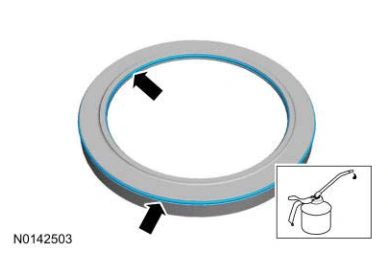

164. Lightly coat the O-ring seals in clean automatic transmission fluid and install the intermediate clutch piston.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.)
