Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,039HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9039Original colors & callouts · Select to enlarge

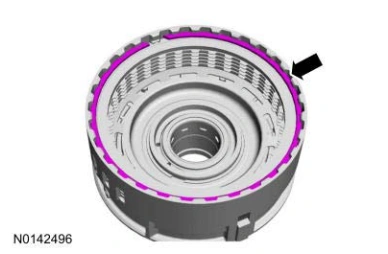

NOTE: All intermediate clutch plates, friction and steel are of a wave-type design.

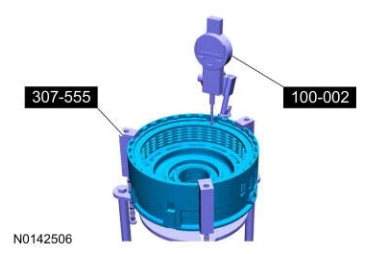

171. Install the intermediate clutch assembly on the Clutch End Play Gauge and install the dial indicator gauge. Position the plunger so it fits into the opening of the snap ring.Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge., 307-555 End Play Gauge, Clutch.

Shift Solenoids (Ss) — original illustration 2, reference 9039Original colors & callouts · Select to enlarge

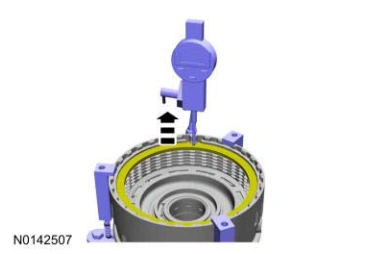

172. With the dial indicator set at zero, lift up on the steel pressure plate so it is against the select fit snap ring. Record this reading as reading A.

Shift Solenoids (Ss) — original illustration 3, reference 9039Original colors & callouts · Select to enlarge

173. Rotate the intermediate clutch assembly 180 ° from the opening of the snap ring, take a second reading and record this reading as reading B.
