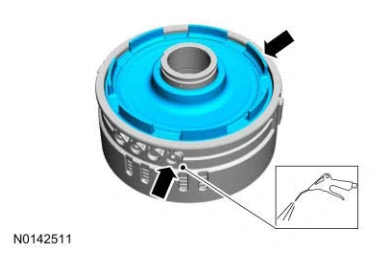

180. Remove and discard the low/reverse outer piston O-ring seal.

Shift Solenoids (Ss) — original illustration 2, reference 9042Original colors & callouts · Select to enlarge

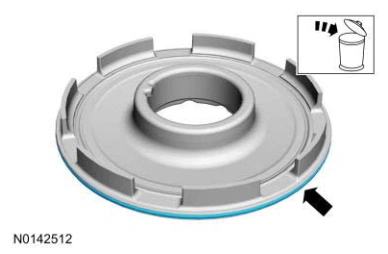

181. Remove and discard the low/reverse drum O-ring seal.

Shift Solenoids (Ss) — original illustration 3, reference 9042Original colors & callouts · Select to enlarge

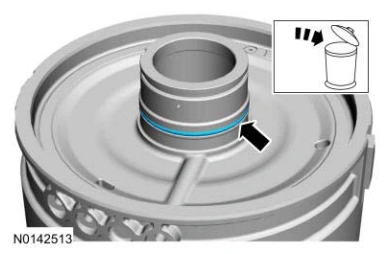

182. Install new low/reverse outer piston O-ring seal.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)
