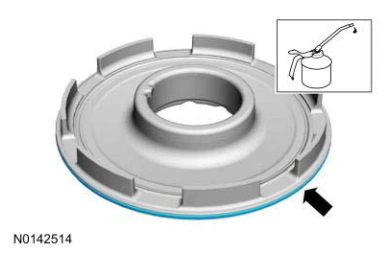

Shift Solenoids (Ss) — original illustration 1, reference 9043Original colors & callouts · Select to enlarge

183. Install a new low/reverse drum inner O-ring seal.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

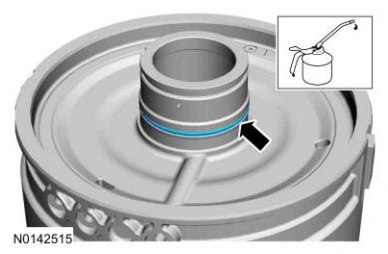

Shift Solenoids (Ss) — original illustration 2, reference 9043Original colors & callouts · Select to enlarge

184. Align the alignment tab on the piston with the groove in the center support and install the low/reverse piston.

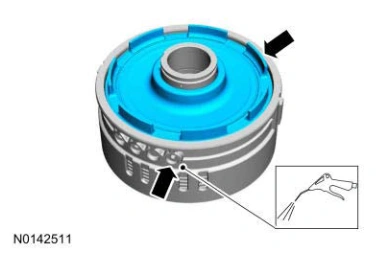

Shift Solenoids (Ss) — original illustration 3, reference 9043Original colors & callouts · Select to enlarge

185. Install the low/reverse clutch return spring.
