Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,046HTML edition

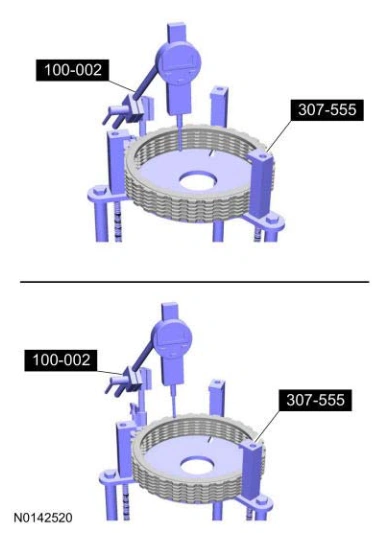

End Play Gauge with the wave spring down and the pressure plate on top. Place the plunger of the dial indicator on the pressure plate. Slide the clutch to the side so the plunger of the dial indicator is touching the gauge plate of Clutch End Play Gauge. Zero out the dial indicator. Carefully lift the plunger enough to slide the clutch pack under the plunger to take a reading. Record this reading. Rotate the clutch pack 180 degrees and take a second reading. Average the readings. Record this as B.

Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge., 307-555 End Play Gauge, Clutch.

Shift Solenoids (Ss) — original illustration 1, reference 9046Original colors & callouts · Select to enlarge

191. Using a depth gauge, measure the piston to center support shoulder height.

Description	Reading
Measure the piston to center support shoulder height. Record this measurement. Rotate the center support 180 degrees and record this measurement. Average the 2 measurements. Record this as C.

Use the General Equipment: Depth Gauge
