Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,048HTML edition
← Chapter contentsManual collection
Shift Solenoids (Ss) — original illustration 1, reference 9048Original colors & callouts · Select to enlarge

195.

1. Pump body

2. Pump plate assembly

3. Index-mark the pump body to the pump plate assembly.

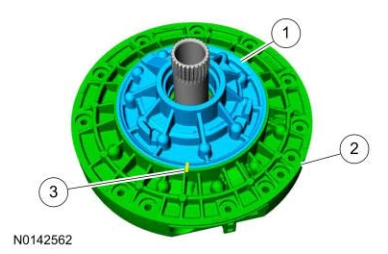

Shift Solenoids (Ss) — original illustration 2, reference 9048Original colors & callouts · Select to enlarge

196.

1. Loosen the pump plate assembly-to-pump body bolts.

2. Push down on the loose pump plate assembly-to-pump body bolts to remove the pump body from the pump plate assembly.

3. Remove the bolts and the pump body.
