Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,049HTML edition

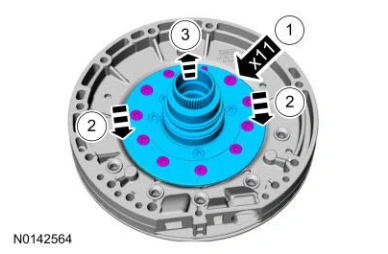

Shift Solenoids (Ss) — original illustration 1, reference 9049Original colors & callouts · Select to enlarge

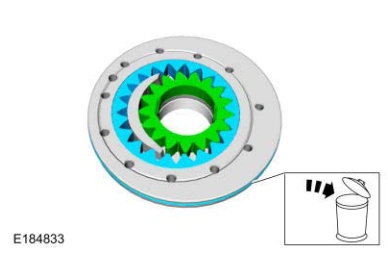

197. Remove and discard the pump body outer seal and remove the fluid pump gears.

Shift Solenoids (Ss) — original illustration 2, reference 9049Original colors & callouts · Select to enlarge

NOTE: Clean all pump components in solvent and dry the parts with compressed air. Inspect the pump gears, faces, gear teeth and mating surfaces for damage or scoring. Install a new pump if necessary.

198.

NOTE: Some pump internal wear mark or light scratches is normal.

1. Acceptable wear.

2. If the gears are burned, discolored or scored or if the teeth are damaged, install a new pump.
