1. Pump body

2. Pump plate assembly

3. Align the marks made during disassembly to correctly assemble the pump. Press the pump body into the pump plate assembly.

Visually inspect the pump body-to-pump plate assembly bolt holes to be sure that the pump body and pump plate are correctly aligned.

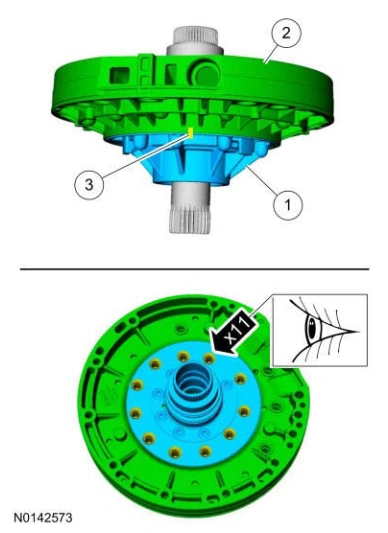

Shift Solenoids (Ss) — original illustration 1, reference 9052Original colors & callouts · Select to enlarge

204. Install the pump plate assembly-to-front pump body bolts.

Torque

: 133 lb.in (15 Nm)
