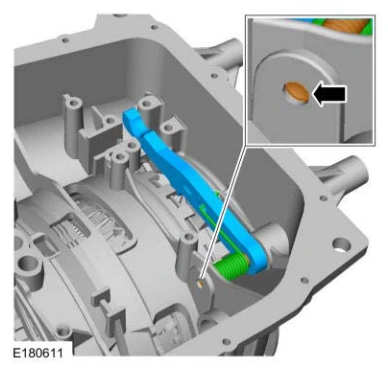

Position the park pawl and spring into the case and install the park pawl pin.

Shift Solenoids (Ss) — original illustration 1, reference 9055Original colors & callouts · Select to enlarge

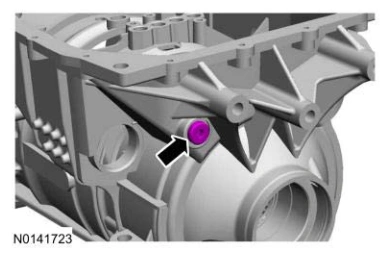

211. Position the park pawl and spring into the case and install the park pawl pin.

Torque

: 17 lb.ft (23 Nm)

Shift Solenoids (Ss) — original illustration 2, reference 9055Original colors & callouts · Select to enlarge

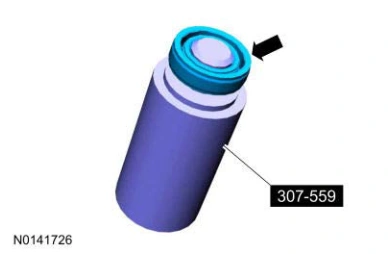

212. Install a new manual control lever shaft seal on the special tool. Use Special Service Tool: 307-559 Installer, Shifter Fluid Seal.

Shift Solenoids (Ss) — original illustration 3, reference 9055Original colors & callouts · Select to enlarge
