Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,057HTML edition

← Chapter contents Manual collection

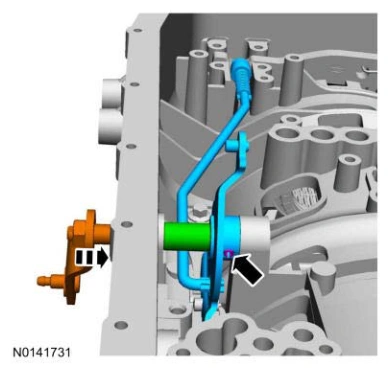

Shift Solenoids (Ss) — original illustration 1, reference 9057Original colors & callouts · Select to enlarge

217. Install the park rod actuating plate and the bolts.

Torque

: 106 lb.in (12 Nm)

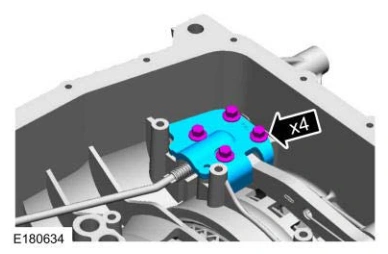

Shift Solenoids (Ss) — original illustration 2, reference 9057Original colors & callouts · Select to enlarge

218. Install the needle bearing on the special tool so that the rounded end faces up.

Flat bearing surface (snap ring side) facing down. Use Special Service Tool: 307-714 Installer, Needle Bearing.

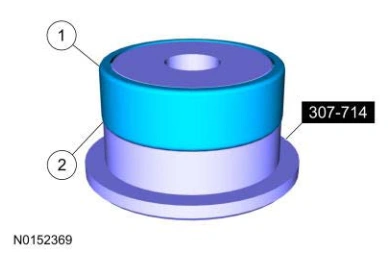

Shift Solenoids (Ss) — original illustration 3, reference 9057Original colors & callouts · Select to enlarge

219.
