Pump Seal.

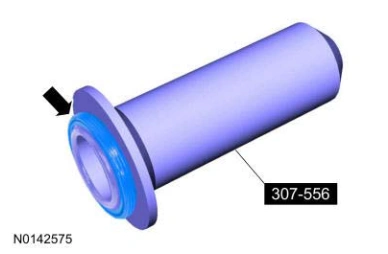

Shift Solenoids (Ss) — original illustration 1, reference 9054Original colors & callouts · Select to enlarge

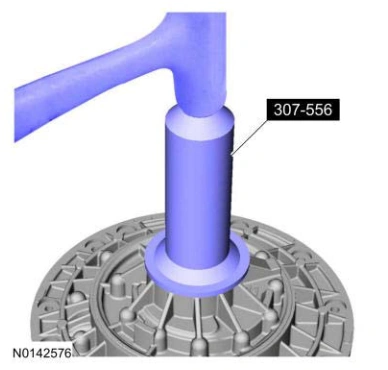

208. Using the special tool, install the front pump seal. Use Special Service Tool: 307-556 Installer, Fluid Pump Seal.

Shift Solenoids (Ss) — original illustration 2, reference 9054Original colors & callouts · Select to enlarge

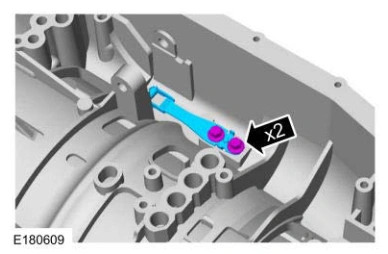

209. Install the park detent spring and the bolts.

Torque

: 106 lb.in (12 Nm)

Shift Solenoids (Ss) — original illustration 3, reference 9054Original colors & callouts · Select to enlarge

210.
