Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,051HTML edition

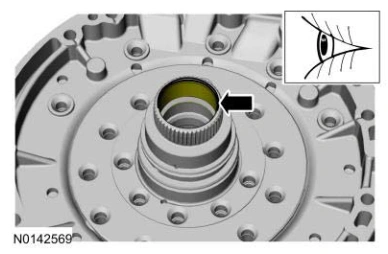

Shift Solenoids (Ss) — original illustration 1, reference 9051Original colors & callouts · Select to enlarge

201. Inspect the torque converter hub bushing for damage or scoring. If the bushing is damaged, install a new pump.

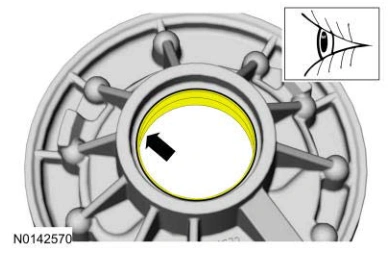

Shift Solenoids (Ss) — original illustration 2, reference 9051Original colors & callouts · Select to enlarge

NOTE: Prior to installation, lightly lubricate the pump gears with clean automatic transmission fluid.

202. Install the pump gears with the dot facing the pump plate assembly and install a new pump body outer seal. Lubricate the pump gears and the seal with clean automatic transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

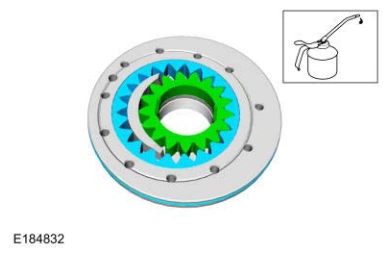

Shift Solenoids (Ss) — original illustration 3, reference 9051Original colors & callouts · Select to enlarge

203.
