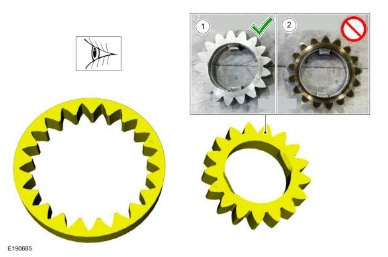

Shift Solenoids (Ss) — original illustration 1, reference 9050Original colors & callouts · Select to enlarge

199. Inspect the pump body for damage or scoring.

Inspect the pump plate assembly for damage or scoring.

Inspect the pump gear thrust surfaces for damage or scoring.

Install a new pump if necessary.

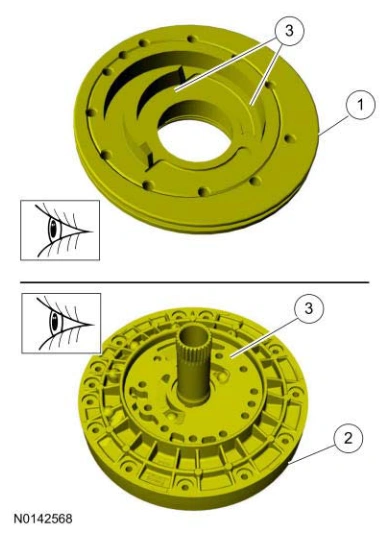

Shift Solenoids (Ss) — original illustration 2, reference 9050Original colors & callouts · Select to enlarge

200. Inspect the input shaft bushing for damage or scoring. If the bushing is damaged, install a new pump.
