Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,047HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9047Original colors & callouts · Select to enlarge

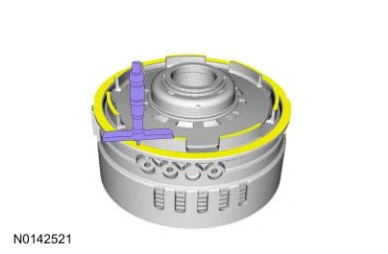

192. Calculate the end clearance. Compare the end clearance to the specification. If the end clearance is out of specification, select the next thinner or thicker plate as required and repeat the steps to measure the clutch height.

Description	Reading
Subtract B and C from A to determine end clearance
Total C measurement
End clearance specification	1.0-1.6 mm (0.039-0.062 in)

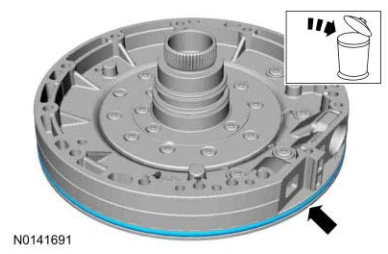

193. Remove and discard the front pump O-ring seal.

Shift Solenoids (Ss) — original illustration 2, reference 9047Original colors & callouts · Select to enlarge

194. Remove and discard the front pump seal rings.
