Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,045HTML edition

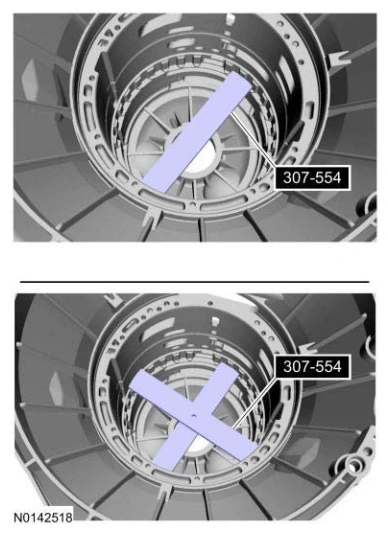

Shift Solenoids (Ss) — original illustration 1, reference 9045Original colors & callouts · Select to enlarge

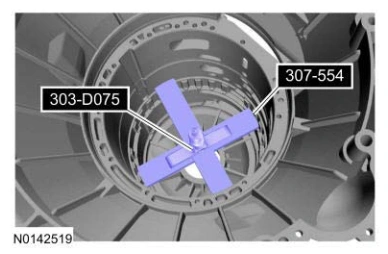

189. With the special tool positioned in the case, use the depth gauge to measure the case stop depth.

Description	Reading
Measure the distance from the top of the upper gauge bar to the top of the lower gauge bar. Record this reading as the case measurement. Record as reading A.

Use Special Service Tool: 307-554 Gauge, D-Clutch Measurement. Use the General Equipment: Depth Gauge

Shift Solenoids (Ss) — original illustration 2, reference 9045Original colors & callouts · Select to enlarge

190. Measure the clutch pack height.

Description	Reading

Place the low/reverse clutch pack on the Clutch
