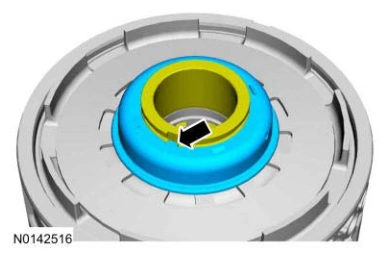

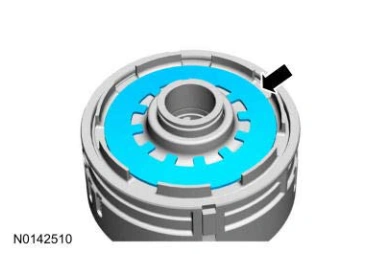

186. Install a new low/reverse clutch return spring retainer. Align the alignment tab on the retainer with the groove in the center support and install the low/reverse piston return spring retainer.

Shift Solenoids (Ss) — original illustration 2, reference 9044Original colors & callouts · Select to enlarge

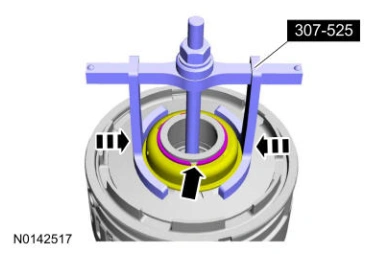

187. Using the special tool, compress the low/reverse clutch return spring and install the retaining ring.Use Special Service Tool: 307-525 Compressor, Clutch Spring.

Shift Solenoids (Ss) — original illustration 3, reference 9044Original colors & callouts · Select to enlarge

NOTE: All low/reverse clutch plates, friction and steel are of a wave-type design.

188. Install the special tool into the case. Use Special Service Tool: 307-554 Gauge, D-Clutch Measurement.
