Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,041HTML edition
← Chapter contentsManual collection
Shift Solenoids (Ss) — original illustration 1, reference 9041Original colors & callouts · Select to enlarge

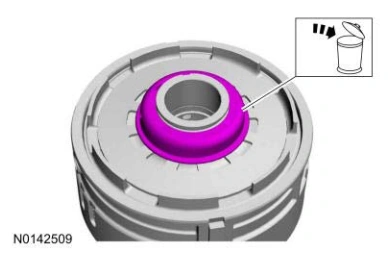

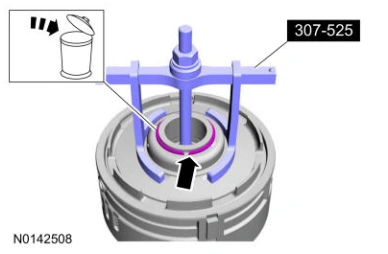

177. Remove and discard the low/reverse clutch return spring retainer.

Shift Solenoids (Ss) — original illustration 2, reference 9041Original colors & callouts · Select to enlarge

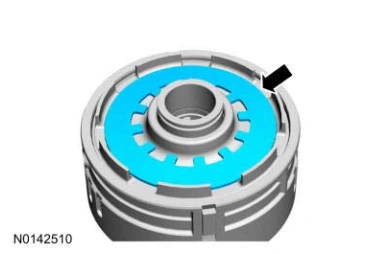

178. Remove the low/reverse clutch return spring.

Shift Solenoids (Ss) — original illustration 3, reference 9041Original colors & callouts · Select to enlarge

179. Apply a slight amount of air to the port, remove the low/reverse clutch piston from the low/reverse clutch drum.
