Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,038HTML edition

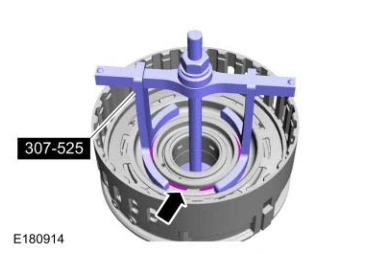

Shift Solenoids (Ss) — original illustration 1, reference 9038Original colors & callouts · Select to enlarge

NOTE: Friction and steel plate quantity will vary based on engine displacement.

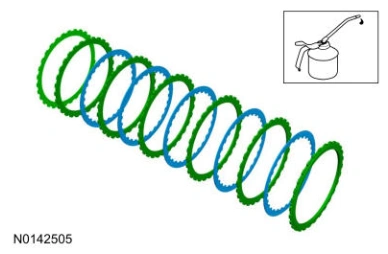

168. Soak the intermediate clutch plates in clean automatic transmission fluid. For friction and steel plate quantity, refer to the Clutch Plate Quantity Chart. Refer to: Specifications .

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Shift Solenoids (Ss) — original illustration 2, reference 9038Original colors & callouts · Select to enlarge

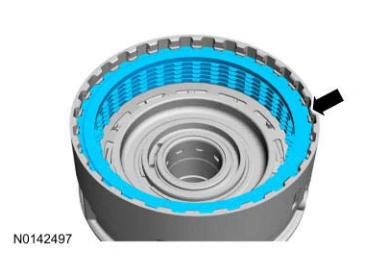

169. Install the intermediate clutch plates, starting with the wave spring then a steel plate and alternating between friction and steel plates, and ending with the pressure plate.

Shift Solenoids (Ss) — original illustration 3, reference 9038Original colors & callouts · Select to enlarge

170. Install the intermediate clutch plate snap ring.
