Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,037HTML edition
← Chapter contentsManual collection

(MERCON ® LV) (WSS-M2C938-A)

Shift Solenoids (Ss) — original illustration 1, reference 9037Original colors & callouts · Select to enlarge

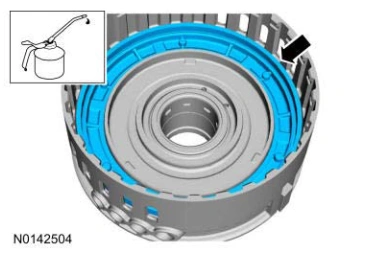

165. Install the intermediate clutch return spring.

Shift Solenoids (Ss) — original illustration 2, reference 9037Original colors & callouts · Select to enlarge

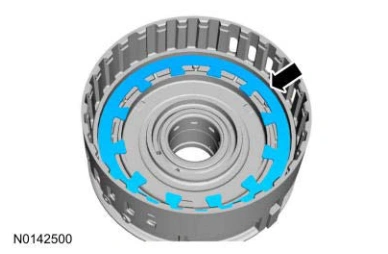

166. Install the intermediate clutch return spring top plate.

Shift Solenoids (Ss) — original illustration 3, reference 9037Original colors & callouts · Select to enlarge

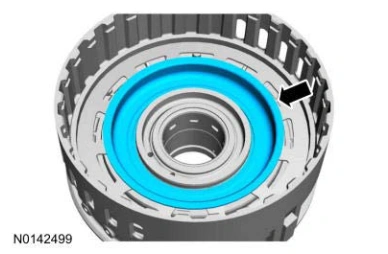

167. Using the special tool, install a new intermediate clutch return spring retainer. Use Special Service Tool: 307-525 Compressor, Clutch Spring.
