Description | Reading |
|---|---|
Reading A | |
Reading B | |
Average reading A and B for a total end clearance |
NOTE: If the final measurement is not within specification, install a new snap ring until the correct specification is achieved.
Step 174
0.7-1.1 mm (0.027-0.043 in)
If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is high, re-measure using a thicker select fit snap ring. If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is low, re-measure using a thinner select fit snap ring.

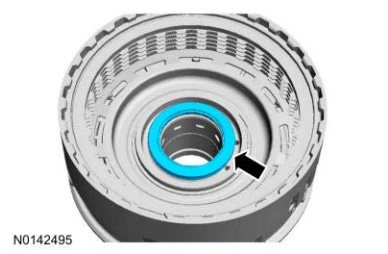

175. Install the T6 thrust bearing.
NOTE: The low/reverse clutch plate quantity is model dependent on engine size. Failure to install the correct clutch plate quantity will result in transmission failure.
NOTE: The low/reverse clutch plates are installed in the case during the transmission assembly procedure.
176. Using the special tool, remove and discard the low/reverse clutch return spring retainer. Use Special Service Tool: 307-525 Compressor, Clutch Spring.
