Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,035HTML edition
← Chapter contentsManual collection
Shift Solenoids (Ss) — original illustration 1, reference 9035Original colors & callouts · Select to enlarge

159. Remove the intermediate clutch return spring top plate.

Shift Solenoids (Ss) — original illustration 2, reference 9035Original colors & callouts · Select to enlarge

160. Remove the intermediate clutch return spring.

Shift Solenoids (Ss) — original illustration 3, reference 9035Original colors & callouts · Select to enlarge

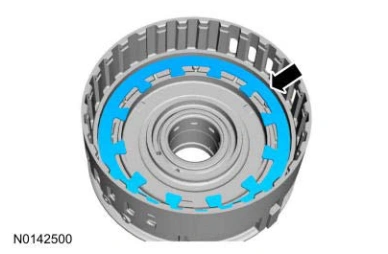

161. Applying a slight amount of air to the port, remove the intermediate clutch piston.

Ford_Mustang_all_2015-2017.pdf · source reference 9035
