Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,053HTML edition

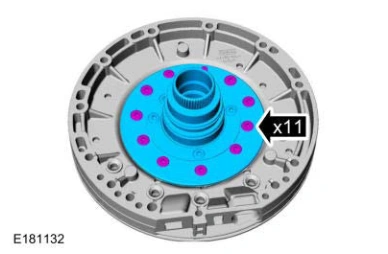

Shift Solenoids (Ss) — original illustration 1, reference 9053Original colors & callouts · Select to enlarge

NOTE: Make sure that the seal ends of each seal ring are hooked together or fluid leakage can occur.

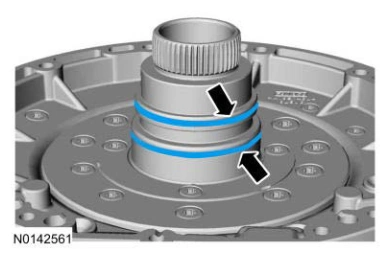

205. Install the front pump seal rings onto the stator support. Make sure the seals are fully seated in the stator support seal grooves and the seal ends are oriented 180 degrees apart.

Shift Solenoids (Ss) — original illustration 2, reference 9053Original colors & callouts · Select to enlarge

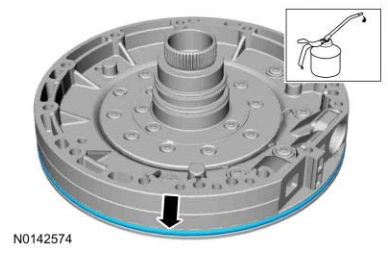

206. Install the pump outer diameter front pump O-ring seal.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Shift Solenoids (Ss) — original illustration 3, reference 9053Original colors & callouts · Select to enlarge

207. Install a new front pump seal on the special tool.Use Special Service Tool: 307-556 Installer, Fluid
