Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,058HTML edition

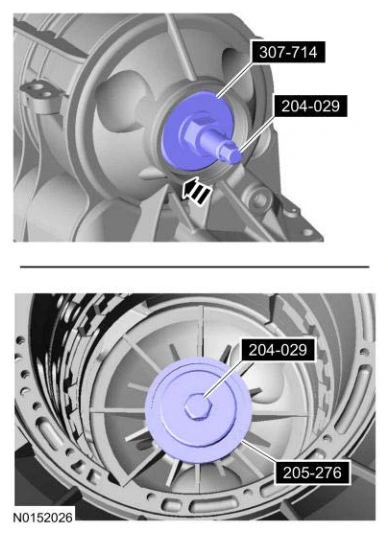

Assemble the special tools and install the bearing in the transmission case.Use Special Service Tool: 204-029 Drawbar., 205-276 Installer, Front Wheel Hub Seal., 307-714 Installer, Needle Bearing.

Shift Solenoids (Ss) — original illustration 1, reference 9058Original colors & callouts · Select to enlarge

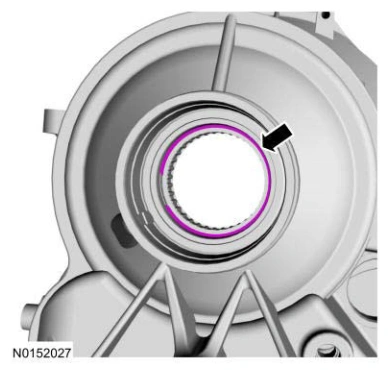

220. Install the snap ring.

Shift Solenoids (Ss) — original illustration 2, reference 9058Original colors & callouts · Select to enlarge

221. Install the bearing on the special tool.Use Special Service Tool: 307-713 Installer, Roller Bearing.
