Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,061HTML edition

← Chapter contents Manual collection

Shift Solenoids (Ss) — original illustration 1, reference 9061Original colors & callouts · Select to enlarge

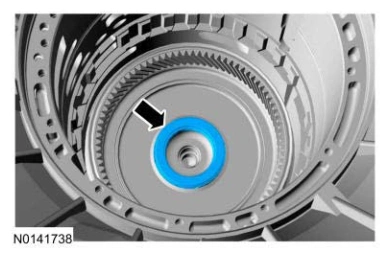

227. Install the T9 roller bearing race into the bottom of the carrier.

Shift Solenoids (Ss) — original illustration 2, reference 9061Original colors & callouts · Select to enlarge

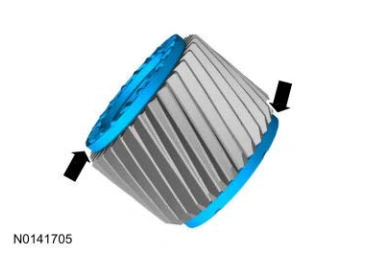

228. Install the top T8 and the bottom T9 roller bearings onto the sun gear.

Shift Solenoids (Ss) — original illustration 3, reference 9061Original colors & callouts · Select to enlarge

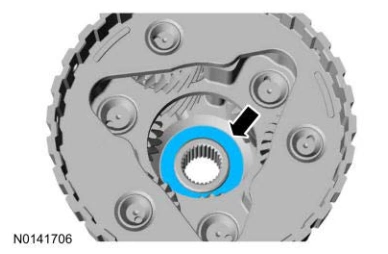

NOTE: When installing the sun gear, make sure that the TAPERED EDGE is facing UP toward the torque converter housing.

229. Install the sun gear into the planetary assembly.
