Shift Solenoids (Ss) — original illustration 1, reference 9062Original colors & callouts · Select to enlarge

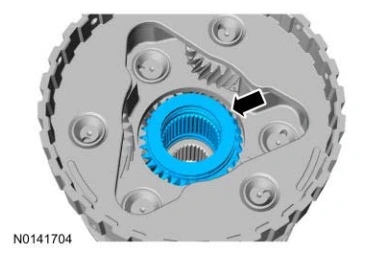

NOTE: Be sure the bearing race is installed in the sun gear.

230.

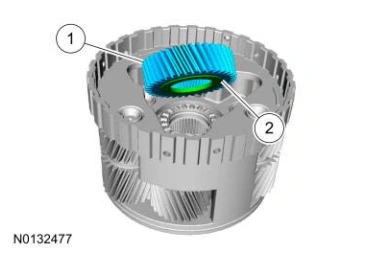

1. low/reverse sun gear

2. bearing race

Install the low/reverse sun gear and bearing race into the planetary carrier with the race side facing down.

Shift Solenoids (Ss) — original illustration 2, reference 9062Original colors & callouts · Select to enlarge

NOTE: Place the manual control lever in PARK when installing the rear planetary gearset to hold the rear ring gear stationary.

231. Install the planetary carrier.
