Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,063HTML edition

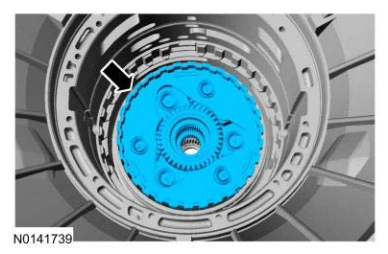

Shift Solenoids (Ss) — original illustration 1, reference 9063Original colors & callouts · Select to enlarge

NOTE: Friction and steel plate quantity are model dependent and vary based on engine displacement.

232. Soak the low/reverse clutch plates in clean automatic transmission fluid. For friction and steel plate quantity, refer to the Clutch Plate Quantity Chart. Refer to: Specifications .

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

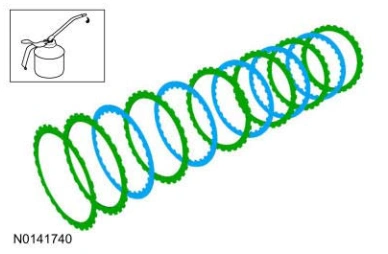

Shift Solenoids (Ss) — original illustration 2, reference 9063Original colors & callouts · Select to enlarge

233. Install the low/reverse clutch plates, starting with the pressure plate and alternating between the friction and steel plates and ending with the wave spring plate on the top.

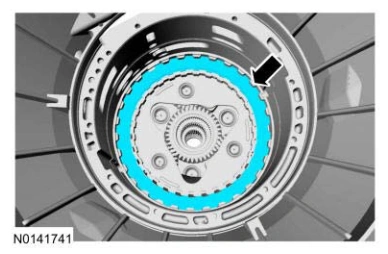

Shift Solenoids (Ss) — original illustration 3, reference 9063Original colors & callouts · Select to enlarge
