Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,066HTML edition

NOTE: Rotate the case to a vertical position.

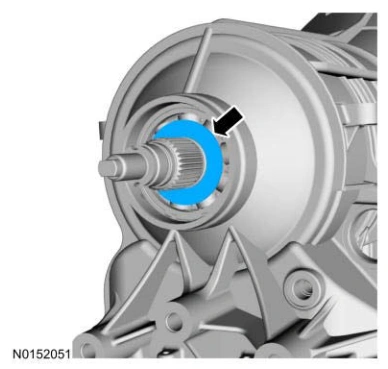

239. Install the slip plane washer.

Shift Solenoids (Ss) — original illustration 1, reference 9066Original colors & callouts · Select to enlarge

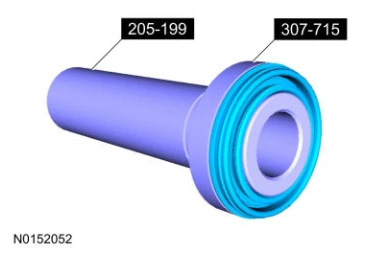

240. Position a new output shaft seal on the special tool.Use Special Service Tool: 205-199 (T83T- 3132-A1) Installer, Spindle/Axle Shaft., 307-715 Installer, Output Seal (4X2).

Shift Solenoids (Ss) — original illustration 2, reference 9066Original colors & callouts · Select to enlarge

241. Using the special tools, install the output shaft seal.Use Special Service Tool: 205-199 (T83T- 3132-A1) Installer, Spindle/Axle Shaft., 307-715 Installer, Output Seal (4X2).
