Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,067HTML edition

← Chapter contents Manual collection

Shift Solenoids (Ss) — original illustration 1, reference 9067Original colors & callouts · Select to enlarge

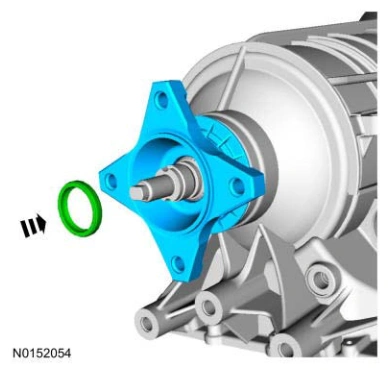

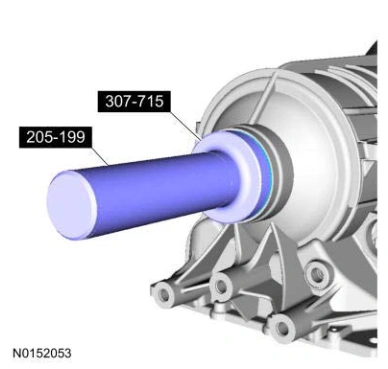

242. Install the output shaft flange and the output shaft flange seal.

Shift Solenoids (Ss) — original illustration 2, reference 9067Original colors & callouts · Select to enlarge

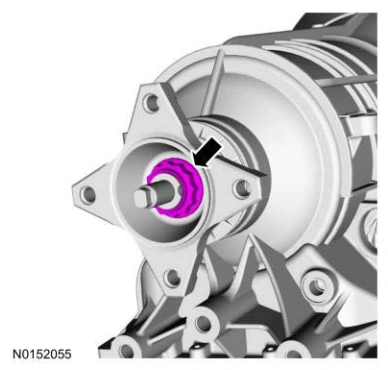

243. Loosely install a new output shaft flange retaining nut.
