Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,065HTML edition

← Chapter contents Manual collection

Shift Solenoids (Ss) — original illustration 1, reference 9065Original colors & callouts · Select to enlarge

NOTE: Make sure the center support feed holes are lined up with the feed holes in the case.

237. Install the center support into the case.

Shift Solenoids (Ss) — original illustration 2, reference 9065Original colors & callouts · Select to enlarge

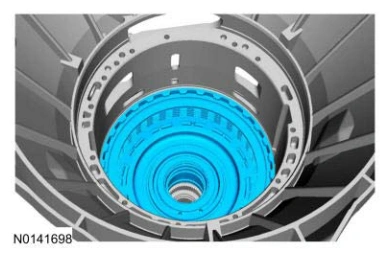

NOTE: Rotate the case to a horizontal position.

NOTE: Install the snap ring with the beveled surface facing up and the snap ring gap in the 3 o'clock or the 9 o'clock position.

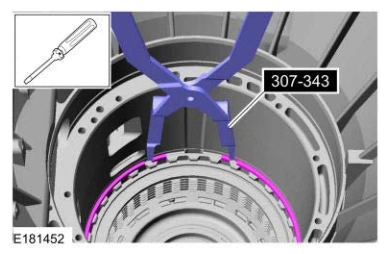

238. Using the special tool, install the center support snap ring. Using a tool, make sure the snap ring is fully seated. Use Special Service Tool: 307-343 Retaining Ring Pliers.Use the General Equipment: Flat Headed Screw Driver
