NOTE: Inspect the T7 thrust bearing and selective shim for damage or scoring.

234. Install the T7 thrust bearing and the selective shim.

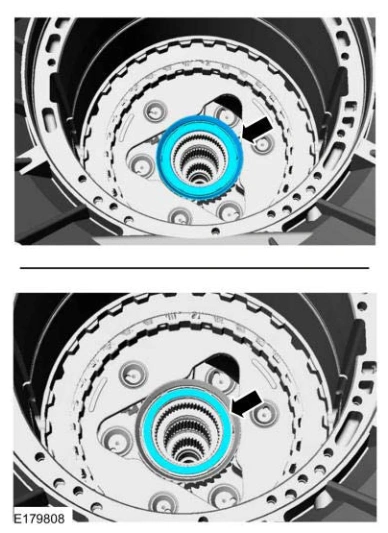

Shift Solenoids (Ss) — original illustration 1, reference 9064Original colors & callouts · Select to enlarge

NOTE: Align the one-way clutch in the transmission case so the bias spring fits into the transmission case.

235. Install the one-way clutch clocked so that the bias spring can engage the one-way clutch and the case.

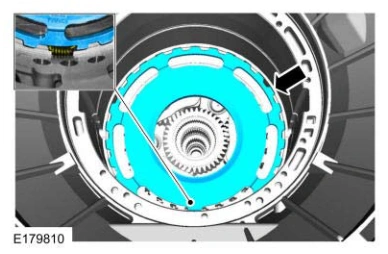

Shift Solenoids (Ss) — original illustration 2, reference 9064Original colors & callouts · Select to enlarge

236. Install the bias spring.
