Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,068HTML edition

NOTE: Loosely install the flange nut or an inaccurate reading may be recorded.

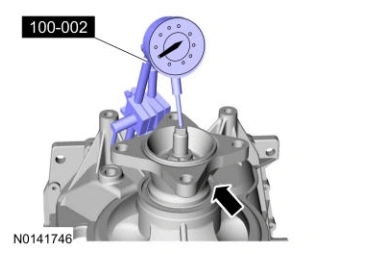

244. Install the special tool on the transmission case and position the plunger on the output shaft flange. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

Shift Solenoids (Ss) — original illustration 1, reference 9068Original colors & callouts · Select to enlarge

NOTE: Loosely install the flange nut or an inaccurate reading may be recorded.

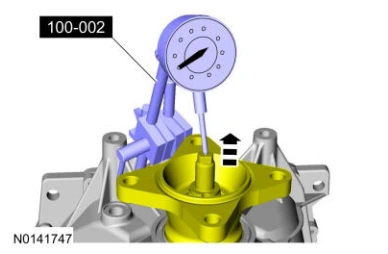

245. Lift up on the output shaft flange and record the reading. The reading should be within 0.6-0.9 mm (0.024-0.035 in). If the reading is not within specification, install a different (either thinner or thicker) rear planetary gearset selective shim.Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

Shift Solenoids (Ss) — original illustration 2, reference 9068Original colors & callouts · Select to enlarge

246. Tighten the output shaft flange nut.

Torque

: 59 lb.ft (80 Nm)
