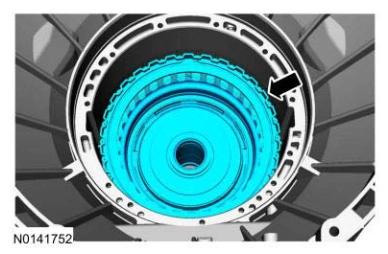

249. Install the direct clutch assembly.

Shift Solenoids (Ss) — original illustration 1, reference 9070Original colors & callouts · Select to enlarge

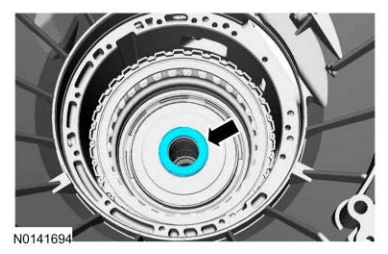

250. Install the T5 roller bearing on the direct clutch assembly.

Shift Solenoids (Ss) — original illustration 2, reference 9070Original colors & callouts · Select to enlarge

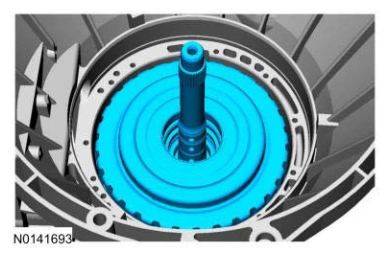

251. Install the forward/overdrive clutch assembly.

Shift Solenoids (Ss) — original illustration 3, reference 9070Original colors & callouts · Select to enlarge

252. Install the selective shim.
