Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,071HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9071Original colors & callouts · Select to enlarge

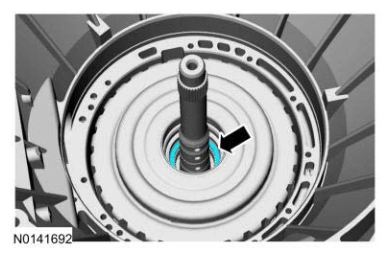

253. Install the special tool on the front pump.Use Special Service Tool: 307-553 Remover, Transmission Fluid Pump.

Shift Solenoids (Ss) — original illustration 2, reference 9071Original colors & callouts · Select to enlarge

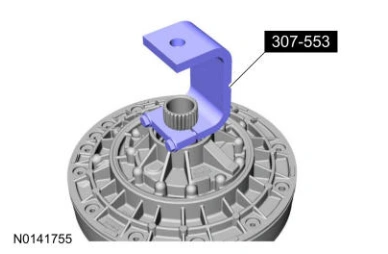

254. Lubricate the transmission case pump bore with petroleum jelly. Using the special tool, position the pump assembly in the case and rotate the pump to insert the pump splines into the front planetary sun gear. Rotate the pump to align the pump-to-case bolts and push the pump into the case. Use Special Service Tool: 307-553 Remover, Transmission Fluid Pump.
