Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,069HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9069Original colors & callouts · Select to enlarge

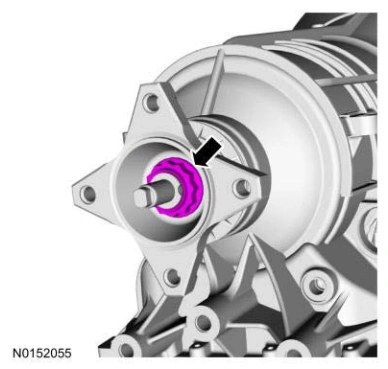

247. After installing the new output shaft flange retaining nut, stake the slots to prevent it from coming loose.Use the General Equipment: Punch

Shift Solenoids (Ss) — original illustration 2, reference 9069Original colors & callouts · Select to enlarge

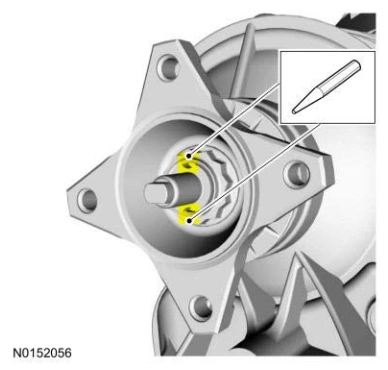

NOTE: Rotate the transmission in the vertical position with the torque converter housing facing up.

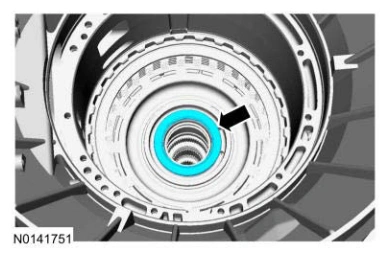

248. Install the T6 bearing.

Shift Solenoids (Ss) — original illustration 3, reference 9069Original colors & callouts · Select to enlarge
