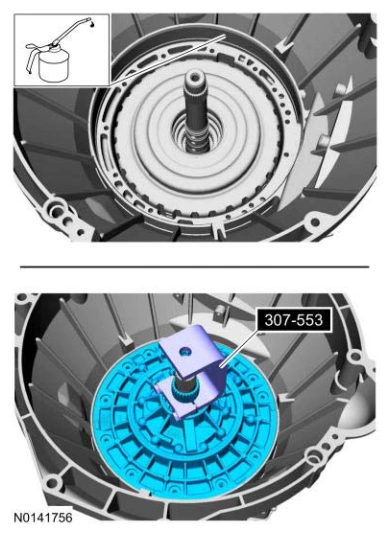

NOTE: Failure to replace the fasteners will result in transmission fluid leakage.

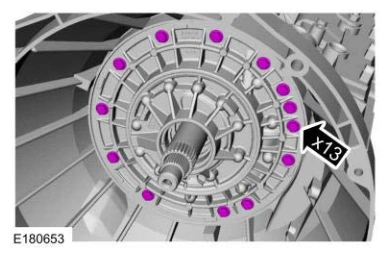

255. Install new front pump-to-case bolts and washers. Tighten in a crisscross pattern.

Torque

: 89 lb.in (10 Nm)

Shift Solenoids (Ss) — original illustration 2, reference 9072Original colors & callouts · Select to enlarge

256. Install the special tool on the input shaft.Use Special Service Tool: 307-534 End Play Gauge, Transmission.
