Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,075HTML edition

Guide pins

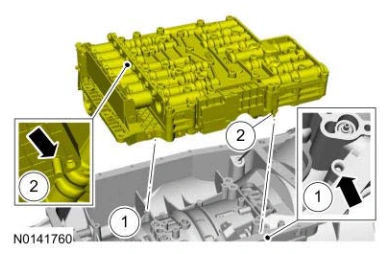

Shift Solenoids (Ss) — original illustration 1, reference 9075Original colors & callouts · Select to enlarge

NOTE: The main control assembly will not lay flush on the case, this is a normal condition with the rubber feed tubes, the bolts will pull the main control assembly down.

262. Slightly lift the main control assembly and align the manual valve in the manual valve linkage and position the main control in place.

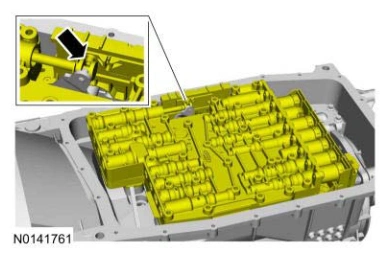

Shift Solenoids (Ss) — original illustration 2, reference 9075Original colors & callouts · Select to enlarge

263. Install the main control assembly bolts and tighten in the sequence shown below.

Torque

: 71 lb.in (8 Nm)
